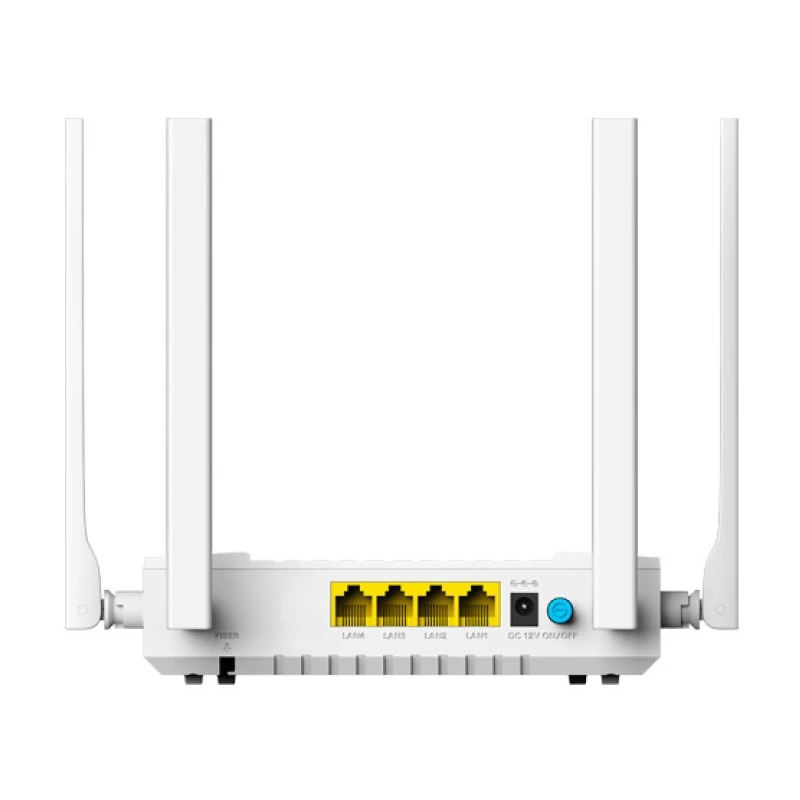

C-DATA 4GE DUAL BAND WIFI6 (AX1500) XPON ONU (FD514GS1-R550)
Rp704.295
Deskripsi
| Model | FD514GS1-R550 |
| User Port (LAN) | 4* 10/100/1000Mbps adaptive Ethernet port |
| Full/half duplex | |
| Auto MDI/MDI-X | |
| Indicators | PWR / PON / LOS / LAN1-4 / INT / WIFI |
| PON Mode | EPON : 1000BASE-PX20+ symmetric |
| GPON : FSAN G.984.2 standard,Class B+ | |
| Connector : UPC (Blue) | |
| PON Rate | EPON : 1.25Gbps (downstream/upstream) |
| GPON : 2.488Gbps/1.244Gbps (downstream/upstream) | |
| Wavelength | Transmit : 1310nm |
| Receiver : 1490nm | |
| Receiving sensitivity | EPON : -27dBm |
| GPON : -28dBm | |
| Saturated power | EPON : -3dBm |
| GPON : -8dBm | |
| Transmitting power | EPON : 0 ~ 4dBm |
| GPON : 0.5 ~ 5dBm | |
| WIFI | IEEE802.11b/g/n(2.4G) |
| 2.4G: 40Mhz bandwidth maximum rate 300Mbps | |
| 2.4G EIRP : 24dBm | |
| IEEE802.11a/n/ac/ax(5G) | |
| 5G: 80Mhz bandwidth maximum rate 1201Mbps | |
| 5 G EIRP : 22dBm | |
| Total wireless rate is 1500Mbps | |
| Power | External 12VDC/1A power supply adapter |
| Power consumption | ≤12W |
| Working temperature | 0 to 40ºC |
| Operating humidity | 10% ~ 90% (Non-condensing) |
